Choisissez votre modèle :

PGS 200 colonne motorisée
Option inclinaison unité de -30° à 30°
Table 3 axes X,Y et rotation sur Z
Table 4 axes X, Y, rotation sur Z et bascule vers l'axe X

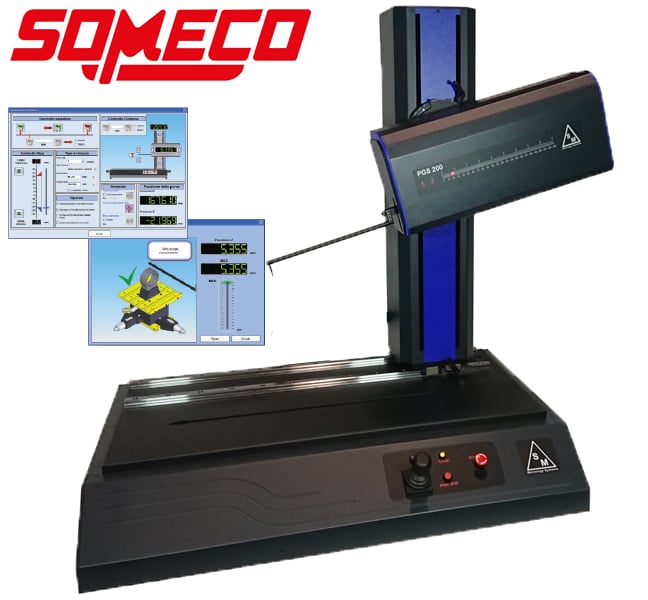

The all-in-one concept of the PGS200 Profilometer makes it possible to make measurements in a few steps, in a very short time. The operator can analyze the profile even on the most complex parts, thanks to its analysis software «Profile Studio», which has been designed for simple and very intuitive use.

  • Technical data
  • Measuring capacity in X 0.15 mm to 220 mm
  • Profile measuring capacity 50 mm
  • X axis resolution 0.5 μm
  • Z axis resolution 0.1 μm
  • Positioning speed 0 to 10 mm/s
  • Measuring speed 0.2 – 0.5 – 1 – 2 mm/s
  • Vertical positioning of column 320 mm
  • Standard probe Radius 20 μm
  • CNC cycle Automatic measurements for auto – comparison
  • Interface 1 USB port for PC connection
  • Dimensions 1100 x 570 x H720 mm (marble with groove)
  • Weight 42 kg
  • Operating temperature 15 – 25°C

Different types of probes on request
