Modular Rugosimeter RTP80-TL90

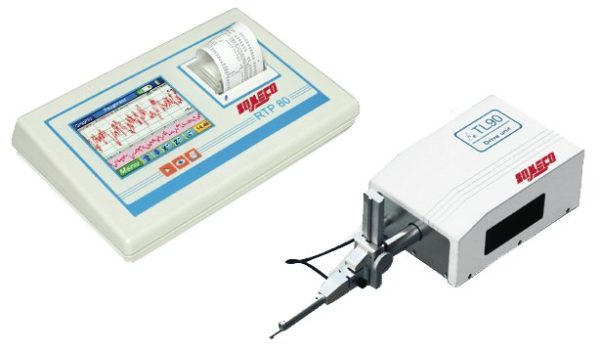

The combination of the RTP-80 Measurement unit with the TL90 Probe Unit, offers a rougosimeter with laboratory instrument performance, while remaining lightweight and easily transportable.
- A wide range of probes, with or without skid is available to allow the control of any type of parts.
- Like the RTP80-TS7, it can also directly measure roughness values at the production site or quality service level.
- Thanks to The Large 5.7′ Colour LCD Display for touch use, the operator can intuitively set the roughness meter.
- The data as well as the graphs are displayed on the screen, so it is very easy to analyze the results.
- It is also possible to edit roughness values and graphics with the built-in printer.
The TL90 Probe Unit can be used to measure on a gande amplitude with probe with pad or probe without pad. The probe can be positioned from the axis or at 90°, to easily measure roughness on cylindrical parts. It is possible to measure profiles up to 1 mm in height.
Features:
Control and measurement unit RTP80:
- Roughness, profile and ripple parameters according to international standard standards
- Unit of measurement μm or μinch
- Measuring speed: 1 mm/sec or 0.5 mm/sec
- Resolution: 0.001 μm (0.04 μinch)
- Cut-Off: 0.08-0.25-0.8-2.5-8 mm
- Number of Cut-Off: from 1 to 19, configurable.
- Measuring range, up to 1000 μm
- Memory, 1000 measurements
- GAUSS, ISO 11562 and ISO 3274 filters
- Large 5.7’ colour LCD display, touch screen, 320 240 resolution, 256 colours
- Integrated thermal printer
- 3-key keyboard for direct access to main functions
- Very intuitive graphical touch interface
- Tolerances on all parameters
- RS232C output for connection to a PC via software
- Measurement Studio
- Power supply, battery 12V/ AC220V
- Operating temperature, 10 to 40°C
TL90 Probing Unit:
- Probes with skate and probe without skate
- Measuring range, 500μm
- Measuring stroke up to 50 mm
- Return speed: 2 mm/sec
- Measurement position, horizontal, vertical, 90°.
- Contact force according to ISO3274

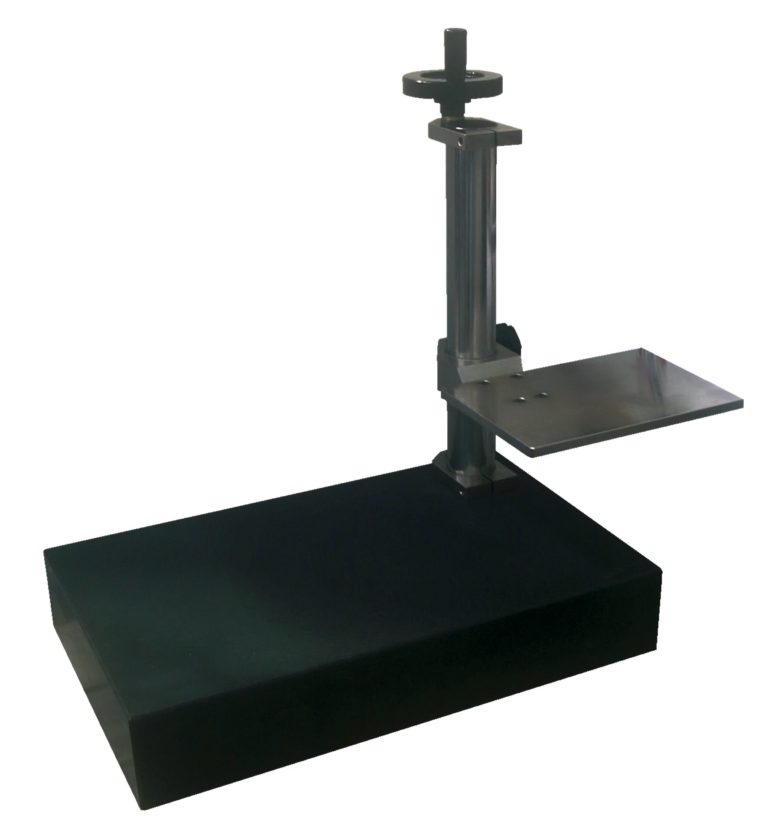

- Probe height adjustment, up to 100 mm
- Measuring principle, differentiated induction.
- Dimensions/Weight, 145x85x45 mm/ 500 g
- Supplied with mixed removable probe, with and without SB10/60 skate ref.1.350 (there are 13 probes for TL90, see following pages «probes for rugosimeters»), diamond radius 5μm, 90° (on request 2μm, 60°)
