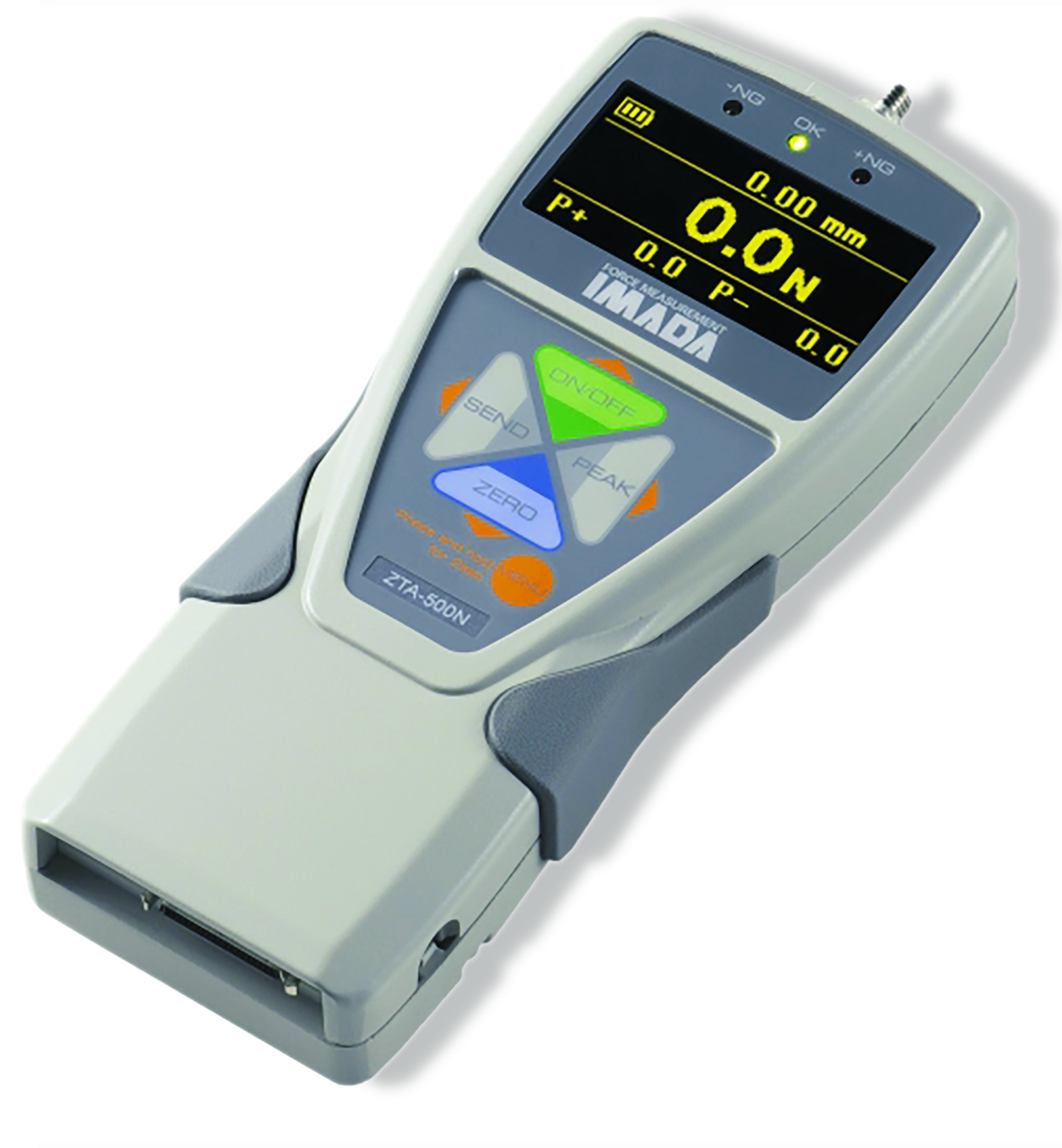

Digital Display Force Gauge Dynamometer
New, more ergonomic design,
New all-round visible display, with organic EL screen,
Precise capture of peak values, thanks to high sampling speed of 2000 Hz,
Via USB connection and included software, easy data recording to PC or USB stick.
This type of display is becoming a standard at IMADA, so you’ll find the same technical features, weight and dimensions for force gauge dynamometers – amplifiers and torque-meters!
Highly functional, easy-to-use Traction-Compression reference dynamometer with high reproducibility.
Features
- Accuracy : +/- 0,2% de la PE *+/-1 digit
- Unity of mesurmeant : N, kgf, lbf
- Display : 4 EL organic numbers
- Display update : 10 times/sec.
- Sampling rate : 2000 data/sec (Max)
- Autonomy : 8 hours
- Overload capacity : ±.200%PE (110% > visual alarm)
- Operating conditions : Température : 0 to 40 degrees celsius
- Humidity : 20 to 80% HR
Functions :
- customizable display (header and footer)
- Peak-Hold (Traction-Compressions)
- Internal data memory : 1000 points,
- Comparator (accept or rejet)
- Reversible display
- Sign Inversion
- Reset timer
- NG+ alarme
- Filter
- Automatic shutdown (power failure)
- Day/hour display
Outputs :
- USB, RS232C, digimatic mitutoyo
- 2 VDC anlog outputs (D/A), 3-state comparator (NG- / OK / NG+)
External connection :
- Send (predefined point information), reset, PEAK ON / OFF setting
- Weight : Approx.490g
- Dimensions : 75x34xH.191 mm
Supplied in a box with accessories :
- Main adaptator
- Control PV
- CD with driver and basic data transfer software
- Set of 8 Tips
- USB Cable
