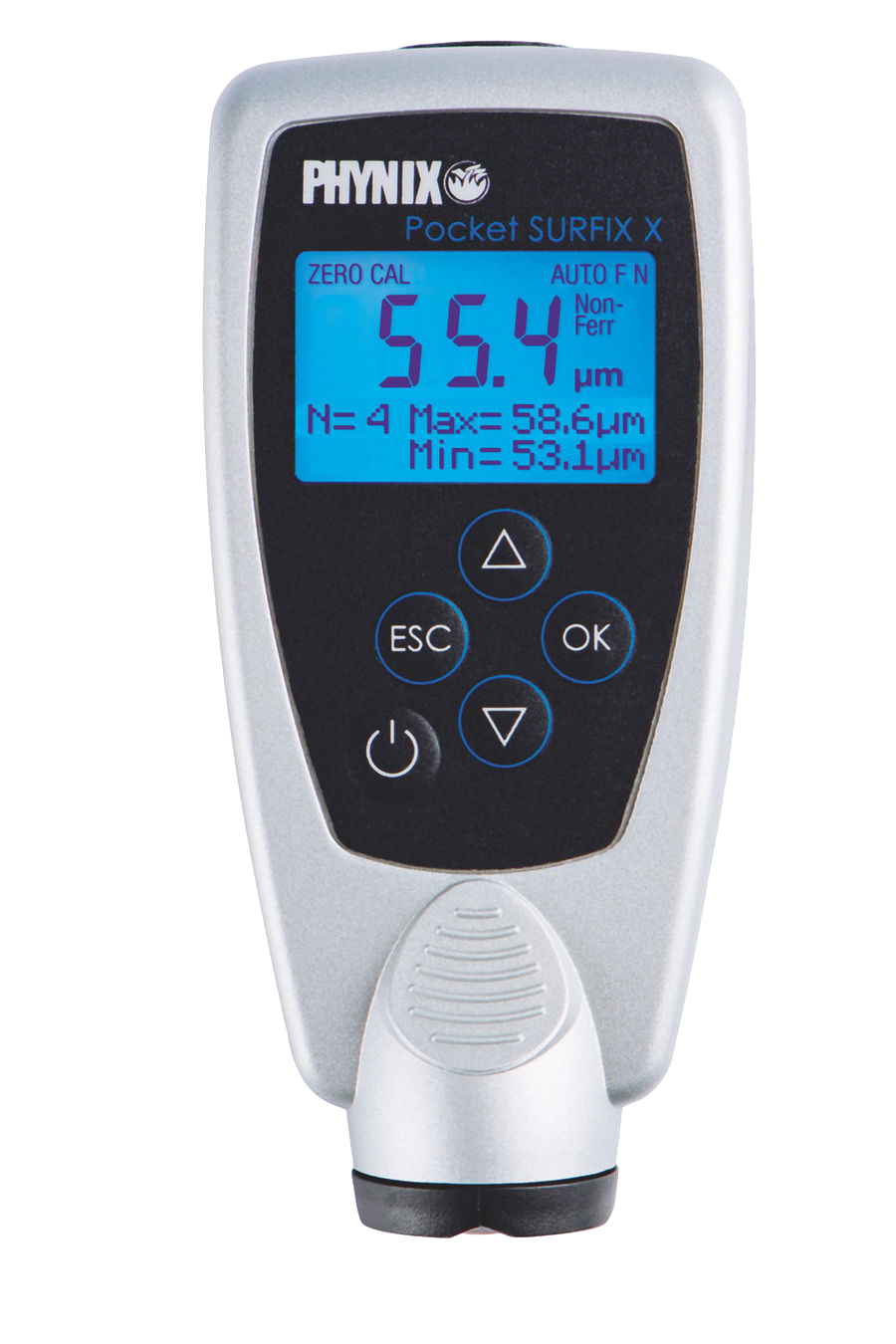

Pocket-SURFIX® X Coating Thickness Gauges
Promotion !
Promotion !
Pocket-SURFIX® X coating thickness gauges are available in 3 models:
- – Pocket-Surfix® X-FN ( MIXED Fe & NFe Meter. On steel or iron and On non-ferrous.)
- – Pocket-Surfix® X-F (Measuring device for all non-magnetic coatings such as synthetics, lacquers, enamels, copper, chromium, zinc, etc. On steel or iron.)
- – Pocket-Surfix® X-N (Measuring device for all insulating coatings such as lacquers, synthetics, enamels, paper, glass, rubber, etc. On non-ferrous materials)
Main features Pocket-SURFIX(R) X:
- Ferrous (F), Non-Ferrous (N), Mixed (FN)
- Measuring capacity: 0-1500 µm
- Measurement uncertainty: (1 µm +1% of value)
- Resolution: 0.1 µm or <0.2% of read value
- Large, easy to read display with backlight
- 4 alpha-numeric digits, height 8 mm
- Memory: 80 values
- Connectivity: USB 2.0 for export to a PC
- Operating temperature: 0 to 60°C
- Measured surface temperature: -15 to 60°C
- Dimensions – weight: 110x52x25 mm – 90g batteries included
- Protection rating: IP52 (dust and water drops)
Packaging:
Delivered in rigid box with:
- – 1 Integrated Probe Meter
- – 1 zero point plate, 2 plastic standard shims
- – 1 Data Transfer Software
- – 2 x 1.5V AAA batteries, user manual.
