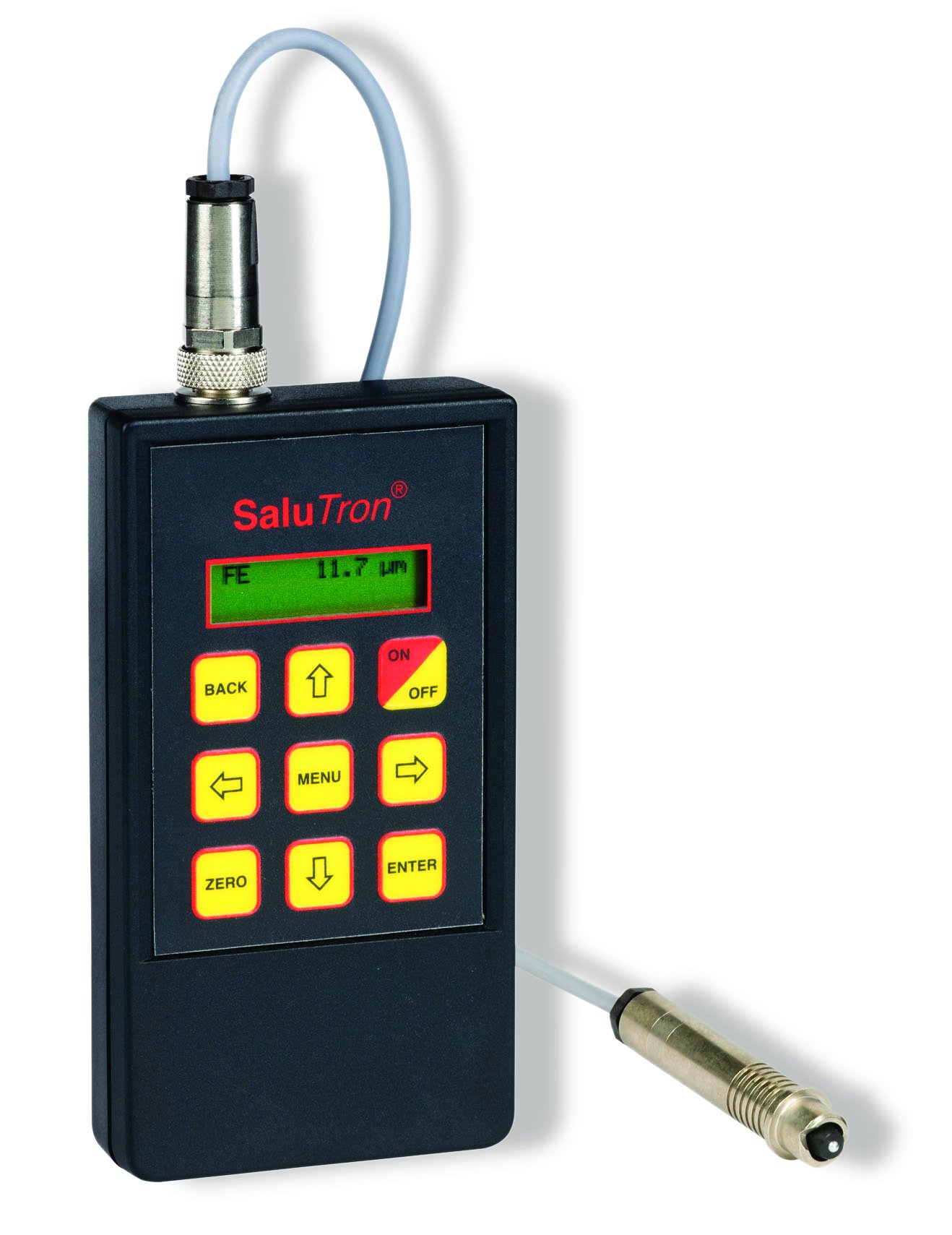

D1 Coating Thickness Meter With Offset Probes
The SALUTRON Coating Thickness Meter model D1, allows to accurately measure all non-ferrous coatings, either on magnetic support (substrate) with Fe probe (magnetic induction), or on magnetic support (substrate) with NFe probe (eddy current)
- The Fe OR NFe Probe is connected to the housing by cable
Key Features:
- Measuring principle Magnetic induction and eddy current
- Substrate Ferrous or non-ferrous
- Measuring capacity 0 – 2 mm 0 – 0.8 mm
- Resolution:
-0.1 μm from 0 to 99.9 μm
-1 μm from 100 to 999 μm
-10 μm from 1 to 2 mm
-0.1 μm from 0 to 99.9 μm
-1 μm from 100 to 800 μm - Accuracy 2% 1.5 μm
- Minimum surface 10 x 10 mm
- Minimum substrate thickness 0.2 mm 0.05 mm
- IP 65 protection
- Operating temperature 0 to 60°C
- Power supply 2 batteries 1.5 Volts
- Dimensions 120 x 65 x 22 mm – Weight 150 g
Delivered in box with:
- D1 housing with separate probe(s)
- 1 plate zero point, 2 batteries 1.5 V,
- instructions for use.
