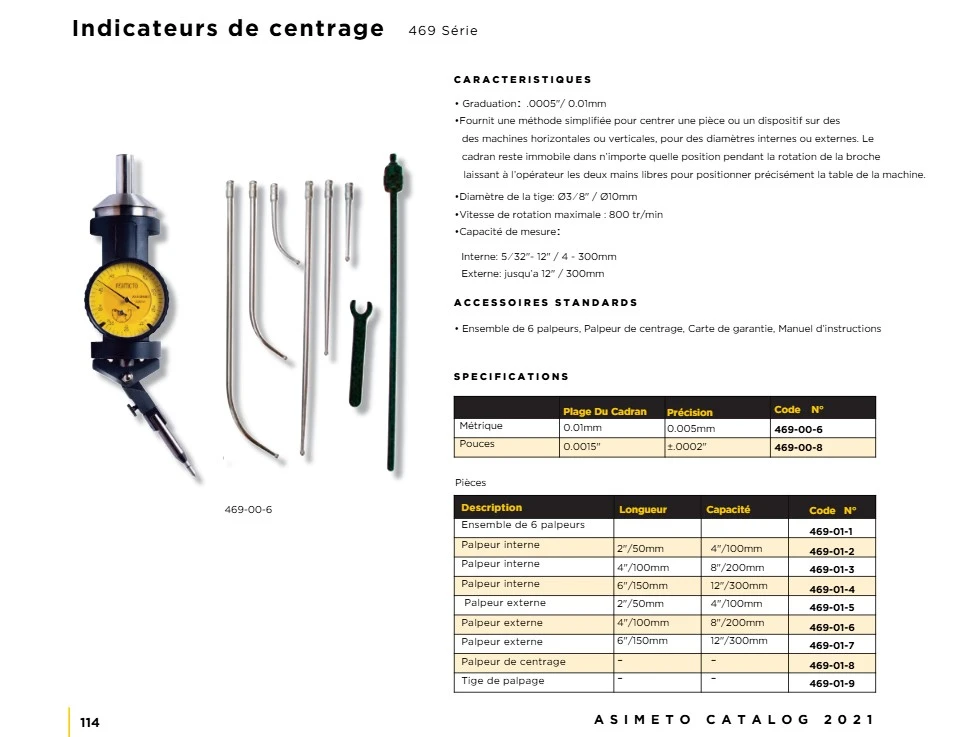

ASIMETO 469 Series Coaxial Centering Indicator

The 469 Series is a range of coaxial/centering indicators used for quickly centering a workpiece (internal or external) on milling machines or chucks: the indicator face remains oriented towards the operator while the spindle rotates, allowing the table to be adjusted with both hands.

Features of an ASIMETO 469 Series Centering Device

• Graduation / Resolution: 0.01 mm (metric)

• Range / Capacities: internal capacity 5/32″ – 12″ (4 – 300 mm) and external capacity up to 12″ / 300 mm depending on the configuration

• Stem Diameter: ø3/8″ / ø10 mm

Key Advantages of an ASIMETO 469 Series Centering Tool

• High Precision: 0.01 mm graduation for reliable and accurate measurements

• Internal and External Diameter Measurement: internal measurement range 4 – 300 mm, external measurement up to 300 mm

• Ease of Use on a Rotating Spindle: the indicator face remains stationary while the spindle rotates, allowing the operator to use both hands to position the workpiece or table

Standard Accessories

• Set of 6 probes

• Centering spindle

• Warranty card

• Instruction manual
