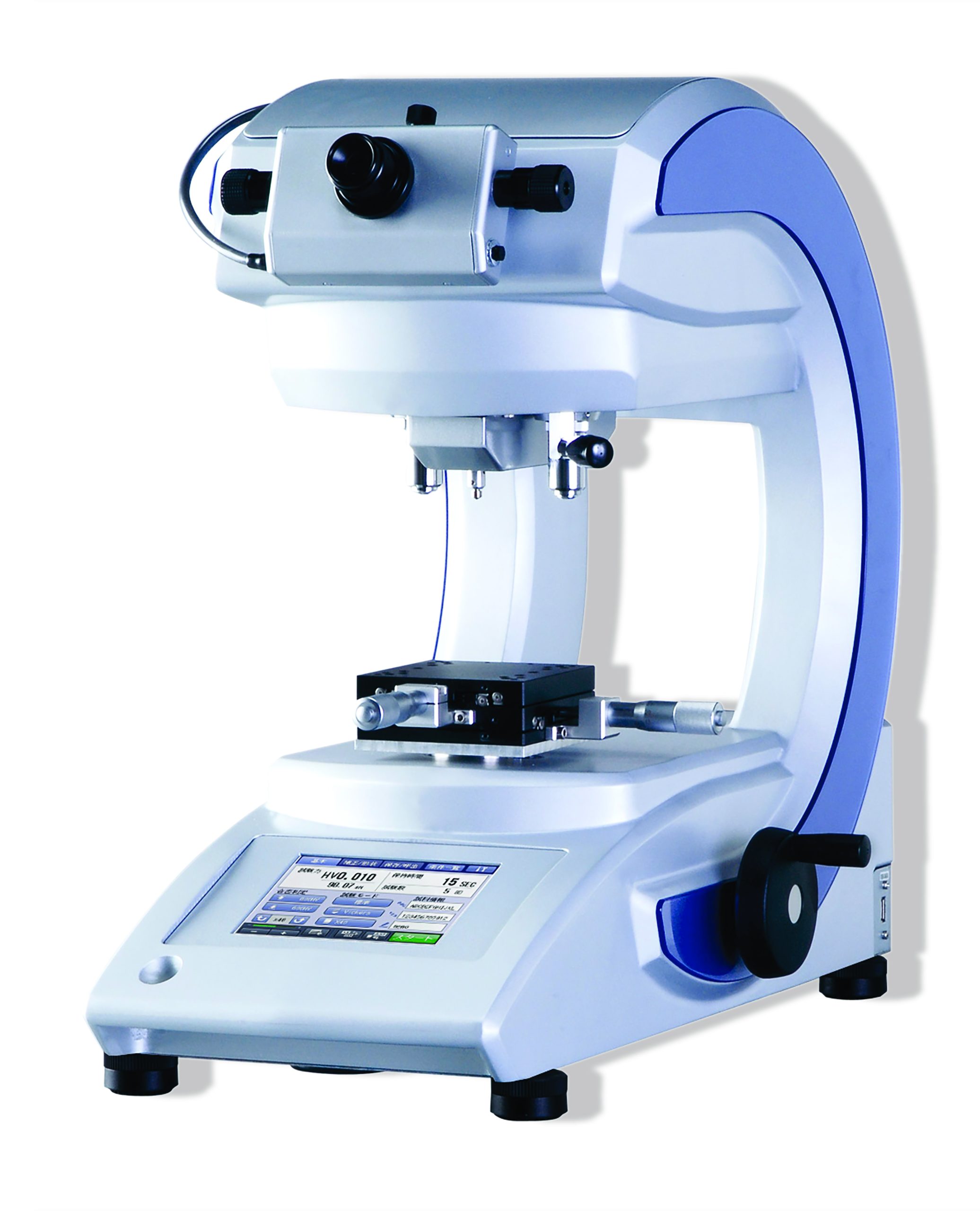

VICKERS SHIMADZU Low Load Durometer – HMV-G20 Series
VICKERS SHIMADZU Series Low Load Durometer HMV-G20:
The micro durometers of the HMV-G20 series, have been specially developed to perform with high precision, VICKERS and KNOOP tests at low loads, but they also allow to do BRINELL tests.
All functions and settings are accessible from the colour touch screen.
Simple and intuitive to use, the tests can be performed by non-specialist and inexperienced operators. Help in the selection of test parameters ‘Test condition settting assist’. Automatic application, maintenance and load reading without operator intervention.
Optical impression measurement, hardness value displayed on large color screen.
Features:
- 10x eyepiece (with 40x lens = 400x magnification)
- Turret 3 or 6 positions depending on model
- 9 Charges d’essai prédé nies, plus 4 paramétrables : 98.07mN, 245.2mN, 490.3mN, 980.7mN, 1.961N, 2.942N, 4.903N, 9.807N et 19.61N (HV0.01, 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1 & 2)
- 3 Optional ‘base’ loads 9.807mN, 19.61mN and 49.04mN (HV0.001, HV0.002 & HV0.009) cannot be added after delivery
- Force control by electromagnetic cell
- Load application time configurable from 1 to 999 seconds
- Test parameters recordable for later recall
- Measuring scale 250 250 μm (with 40x lens)
- XY Table, stroke 25 mm
- Max sample height 100 mm
- Vertical stroke axis Z=60mm (Riser 40 mm provided)
- Swan neck 120 mm with passage for bar
- Memory: 999 values
- Conversions: HK, HBW, HS, Mpa, HRA, HRB, HRC, HRD, HR15N, HR30N, HR45N
- Interfaces: USB to extract the cable in xls format, on storage key + printer output
- Dimensions: L350xP570xH540 mm – Weight 44kg
- Power supply: 220V
Delivered with standard accessories:
- 1 – XY table with analog micrometric stops 25 0.01mm 1 – VICKERS indenter
- 1 – 40x Goal
- 1 – 10x lens (only with G20D & G20DT) HMV-G20
- 1 – Power Cable, Fuses, Cover 1 – User Manual
