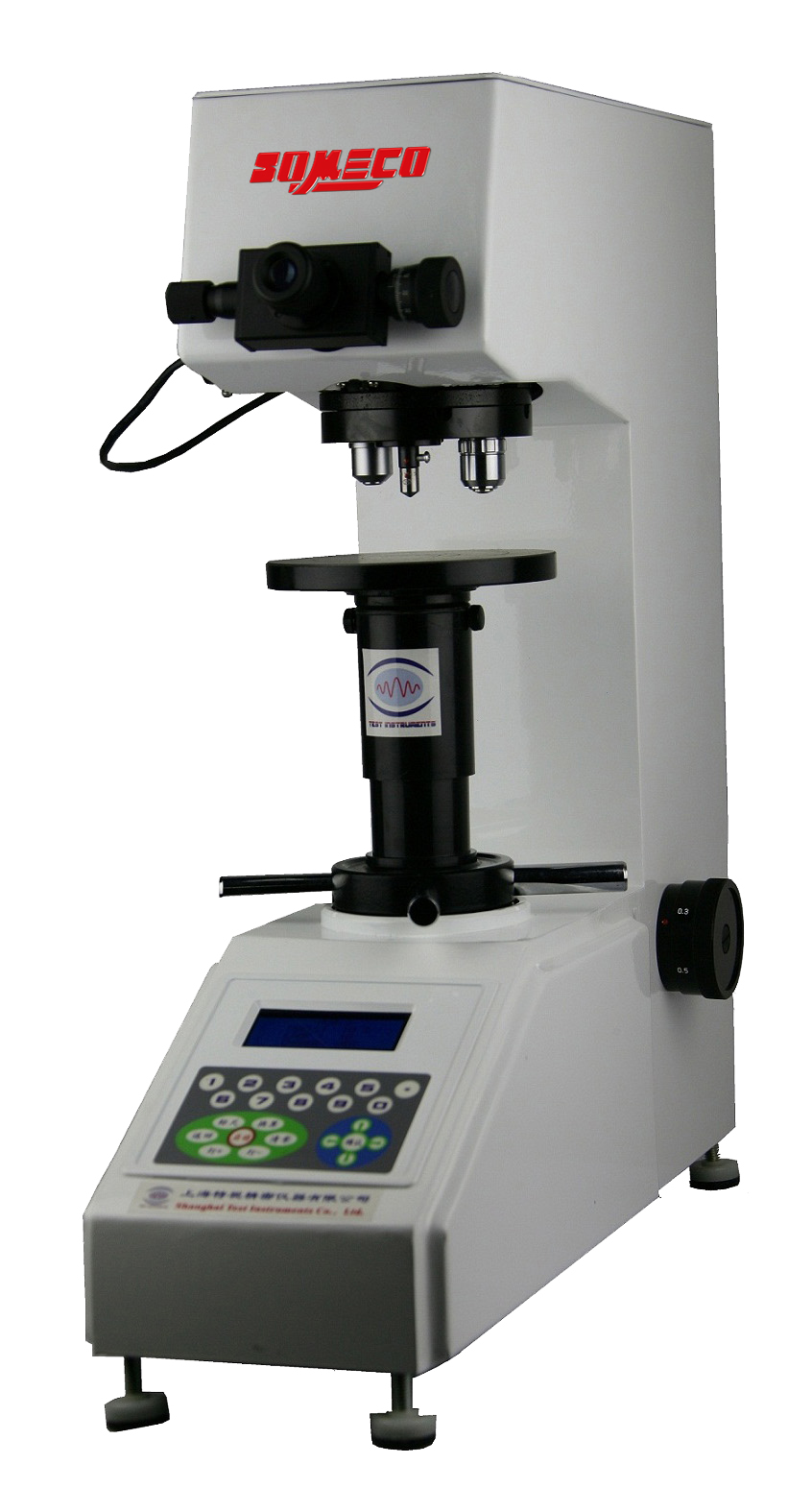

VICKERS Digital Durometer – AMH Series
VICKERS AMH durometers are the advanced version of the SCH series. They offer 7 loads from 1 to 30 kg for the AMH30-Z or 8 loads from 1 to 50 kg for the AMH50-Z.
Durometers VICKERS high loads.
Optical measurement of the impression and validation of the diagonal measurement. Display of the value of the diagonals d1, d2 and Vickers hardness .
Standards and certification, ISO 6507:
|
Réf. |
Display |
Turret |
RS232 Output |
Printer |
| 10 05 06550 | AMH30-Z | Backlit LCD Display | AUTO | NO |
| 10 05 06560 | AMH50-Z | Backlit LCD Display | AUTO | NO |
| 10 05 06990 | ALCD-1000 | – |
Features:
- Optical measurement of the impression
- Lighting control
- Control of the charging time
- Controlled force per load cell
- Statistics menu
- Scale conversions
Supplied with standard accessories in box:
- Vickers Indenter
- 2 Vickers stallions (without certificate)
- 3 anvils (1 small plate, 1 large plate, 1 in vé)
- Spare bulb and fuses
- Power cord
- Service keys
- Operating instructions
