Portable Hardness Tester With Calibrated Pin – STE
High-load device designed for inspection of stock and all raw metals.
Fast and accurate – constant load. Only one indentation to measure.
Brinell reading: 90 to 500 HB or 30 to 180 kg/mm2.
Plug shear load 1580 kg.
Indispensable for all companies.
Dynamic test Composition B
Dynamic measurement is particularly useful for checking
bulky parts that make it impossible to use a press.
Static and dynamic tests Composition A
For the static test, a particularly handy press is used,
(weight 3.3 kg) with a maximum opening of 150 mm and a 75 mm gooseneck.
Operating principle of the durometer with calibrated pin
The calibrated plug rests on the end of the indenter (see diagram).
A load is applied either dynamically (hammer) or statically (press).
This load must be sufficient to shear the plug in one go.
Exactly 1580 KgF are transmitted to the indenter.
All that’s left to do is measure the resulting footprint.
Composition A
STE Static (press) and dynamic (hammer) version
Wooden case including :
- Penetrator assembly
- Press for static test, (weight 3.3 kg)
- Sleeve for dynamic test
- Ø 20 and Ø 40 flat anvil
- V-anvil for diameter
- Test standard
- Measuring magnifier 8 x – 0.1 mm
- Set of spanners
- 250 calibrated dowels
- Conversion table and instructions
- Total weight 6 kg

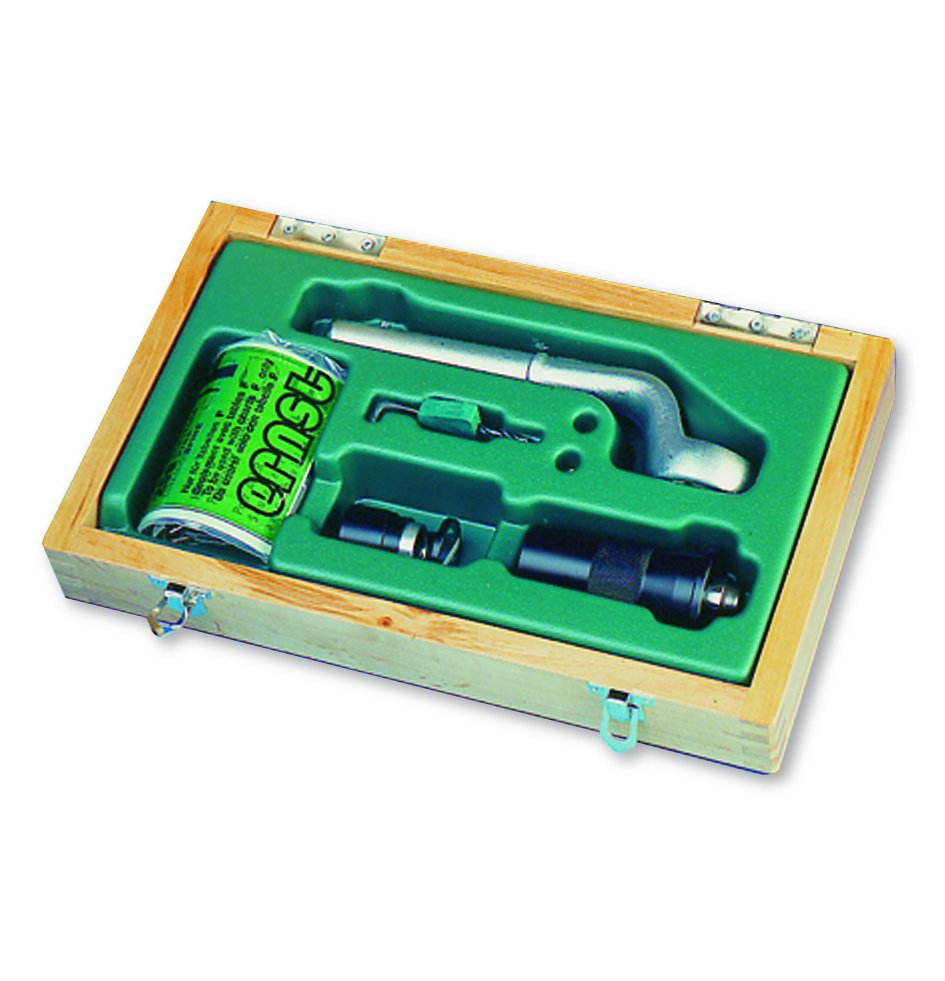

Composition B
STE Dynamic version
Wooden case including :
- Penetrator assembly
- Sleeve for dynamic test and handle
- 8 x – 0.1 mm measuring magnifier
- 250 calibrated dowels
- Conversion table and instructions
