Choisissez votre modèle :

SVL-1000N - Vertical manual test stand
SVL-1000N-L - Vertical manual test stand with 200mm extension
SVL1000N-S - Vertical manual test bench with digital ruler
SVL-1000N-L-S - Vertical manual test stand with 200mm extension and digital ruler

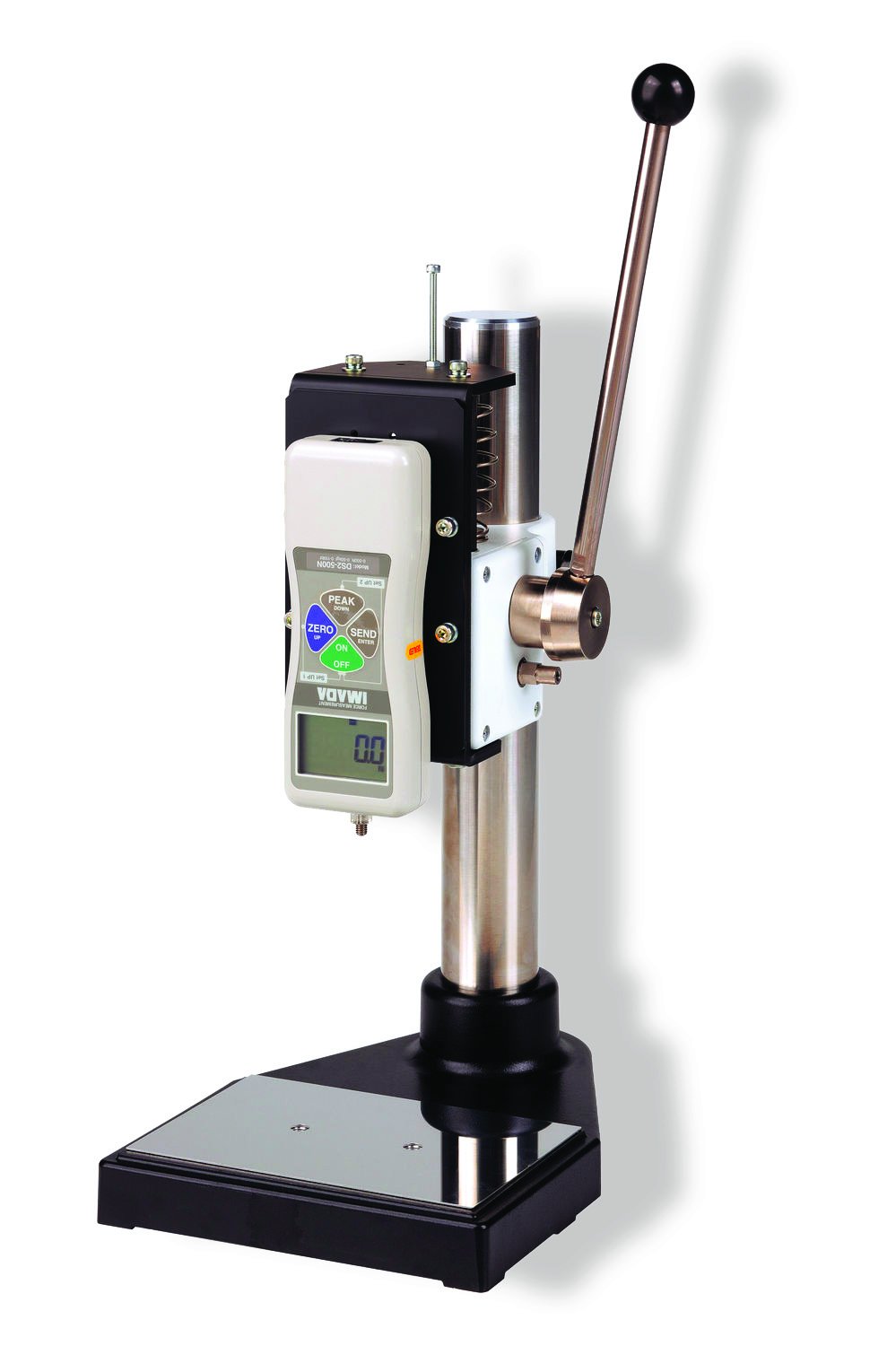

SVL1000N is a lever-operated manual vertical test stand. It can be used to perform tensile and compression force measurement tests. It can be fitted with a digital ruler to visualize displacement in relation to the force exerted. Depending on the application, it can be fitted with an analog (for example FS series) or digital (for example DS series) dynamometer, with a capacity ranging from 2N to 1000N depending on the model.

Features :

  • Lever-operated test stand
  • Allows measurements to be carried out with great maneuverability in tension and compression
  • Capacity: 1000N (100 kgf)
  • Stroke: 60 mm
  • Adjustable displacement 0-263 mm with stop
  • Weight: 7.3 kg
  • Dimensions: 200 x 280 x H 410 mm
  • Option: S version: digital scale L version: 200 mm extension (H 610 mm, stroke 463 mm)
  • Supplied WITHOUT dynamometer.
