SH serie Horizontal manual tensile compression traction test rig SH- 1000N & SH 3000N

Share
Back
Banc d'essai manuel horizontal pour essai de traction-compression

SH serie Horizontal manual tensile compression traction test rig SH- 1000N & SH 3000N

Share

Choose your model :

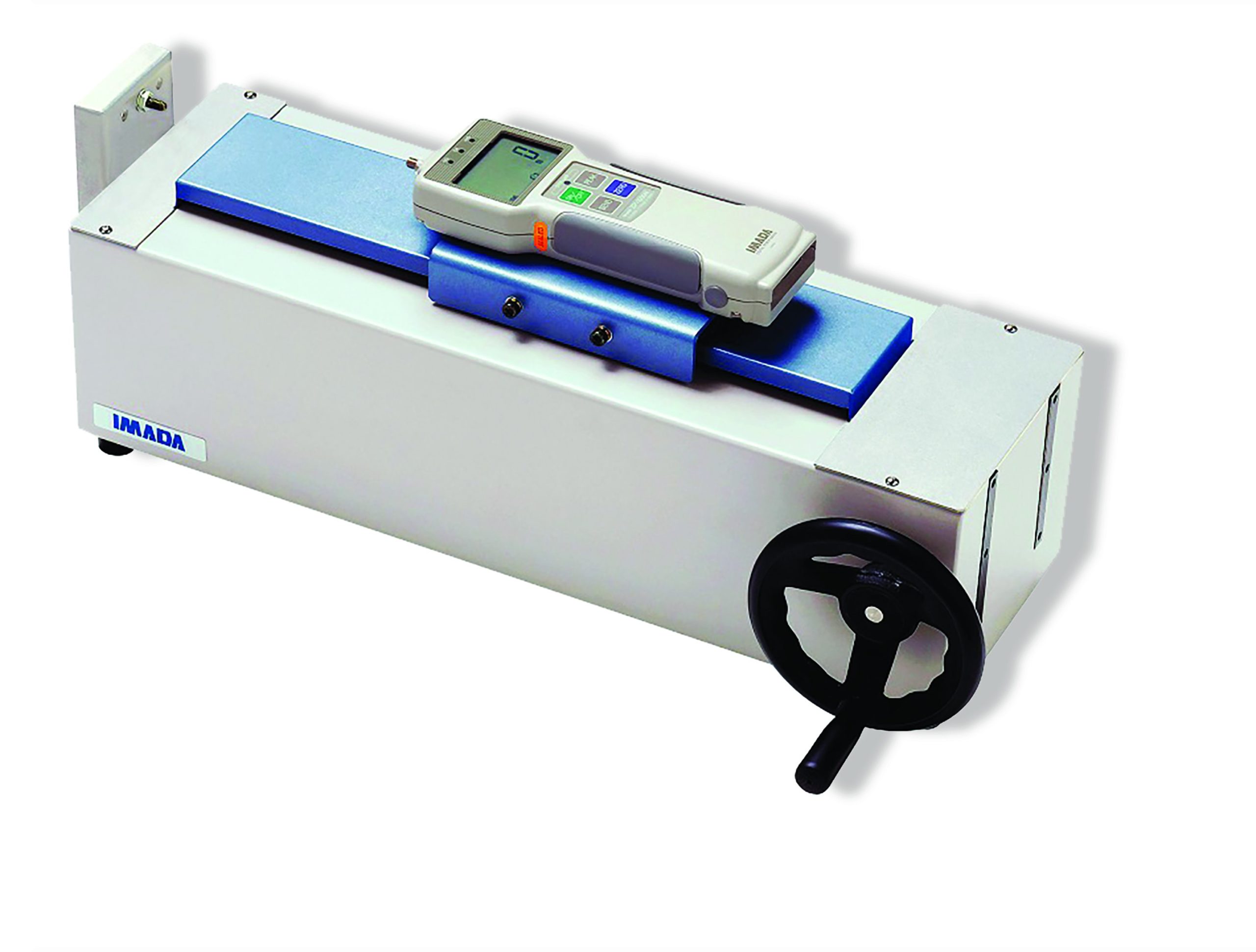

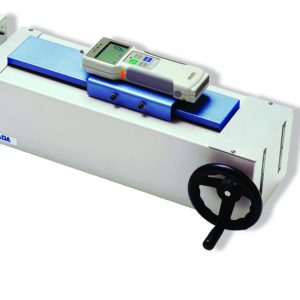

SH serie Horizontal manual tensile compression traction test rig SH- 1000N & SH 3000N

The horizontal manual test stand type SH, have been developed for mesurements, compression and shear applying horizontalement. For even force application, they are fitted with handwheel.

Features SH1000N :

  • Tension/compression flywheel test rig
  • Accuracy : 1000N (100kgf)
  • Stroke : 300mm
  • 1 turn : 1.2mm
  • weight : 15 kg √
  • Sizes : 560 x 265 x Ht 220 mm

Features SH3000N :

  • Tension/compression flywheel test rig
  • Accuracy : 3000N (300kgf
  • Stroke : 370mm
  • 1 turn : 0.6mm
  • Weight : 22 kg
  • Sizes : 697 x 255 x Ht 225 mm

Related equipment & similar products

Banc d’essai motorisé vertical traction-compression

Vertical motorized tension-compression test bench – MX2 Series

12 Variations

Add to quote
F-S MASTER

F-S Master serie

6 Variations

Add to quote
Système de mesure force déplacement

FSA series displacement force measurement unit

21 Variations

Add to quote
Bancs d'essais manuels verticaux

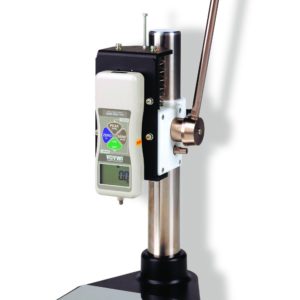

Vertical manual test stand HV-1000 N and HV 3000 N
