horizontal peel Test stand
horizontal peel Test stand
- Description

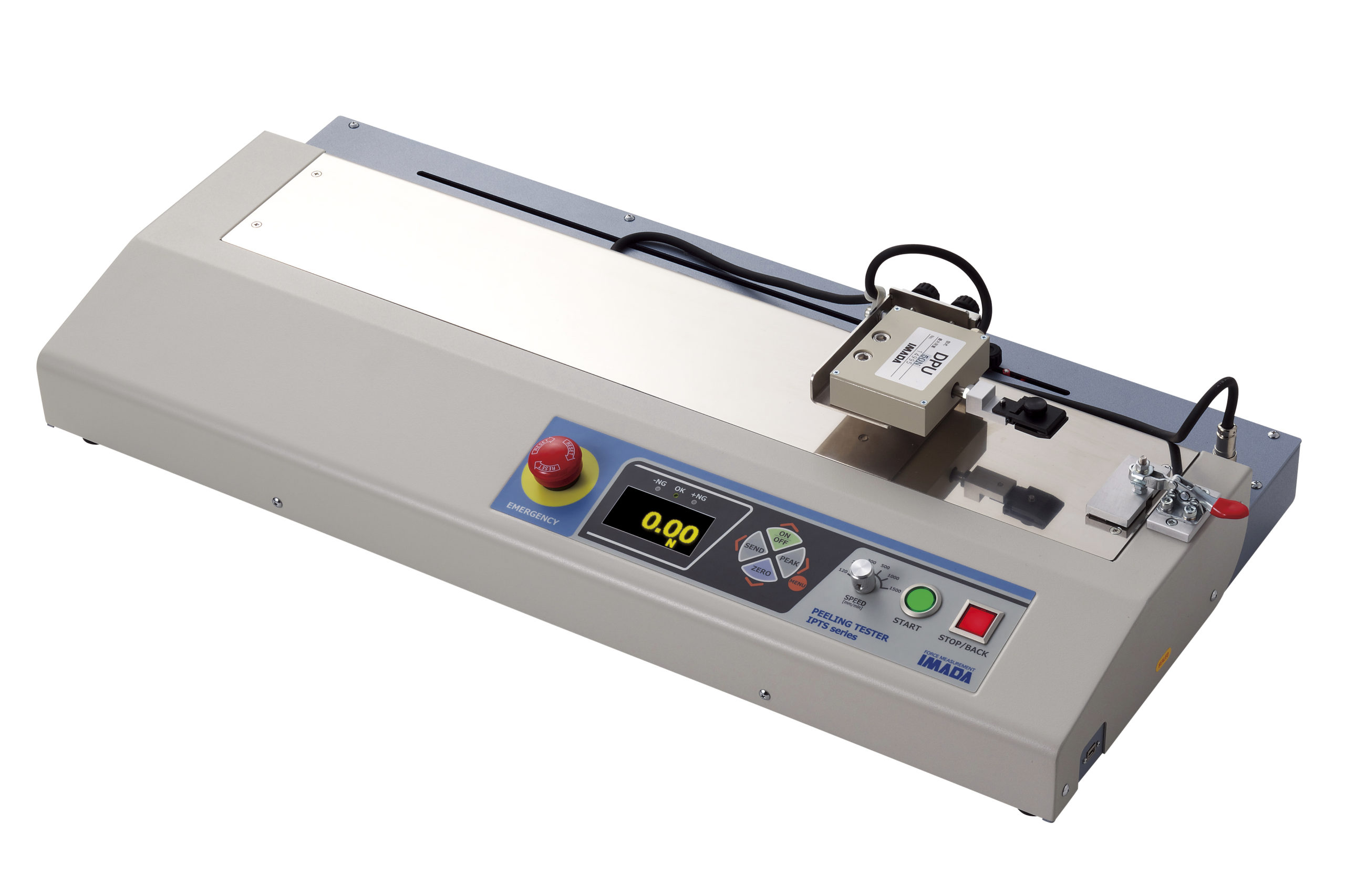

Horizontal peel test stand
The Horizontal Test Stand is designed for testing stickers, adhesive tape and magnetic tape. It detects all small changes with a high sampling rate (2000Hz).
180° peel test stand zp-Recorder-IPT software USB output connexion cable. Tension clamp
Features :
- 5 Capacities : 2, 5, 10, 20 or 50N (200 gf at 5 Kgf)
- Sample width : 8 to 88mm for 2 and 5 N 1to 20mm for 10, 20 and 50 N
- Resolution : 0.001 mm for 2 and 5 N 0.2 mm for 10, 20 and 50N
- Tickness : 0.5 mm for 2 and 5 N 0.2mm for 10, 20, and 50 N
- Stroke : 400mm
- Peeling stoke : 200mm
- 5 Selectable speeds
- Limit stops
- Emergency stop
- Power supply : 220V
- Approx weight : 11 kg
- Dimensions 710 x 300 x H 126mm
