Digital Profile Projector – InspecVista
Digital Profile Projector – InspecVista:

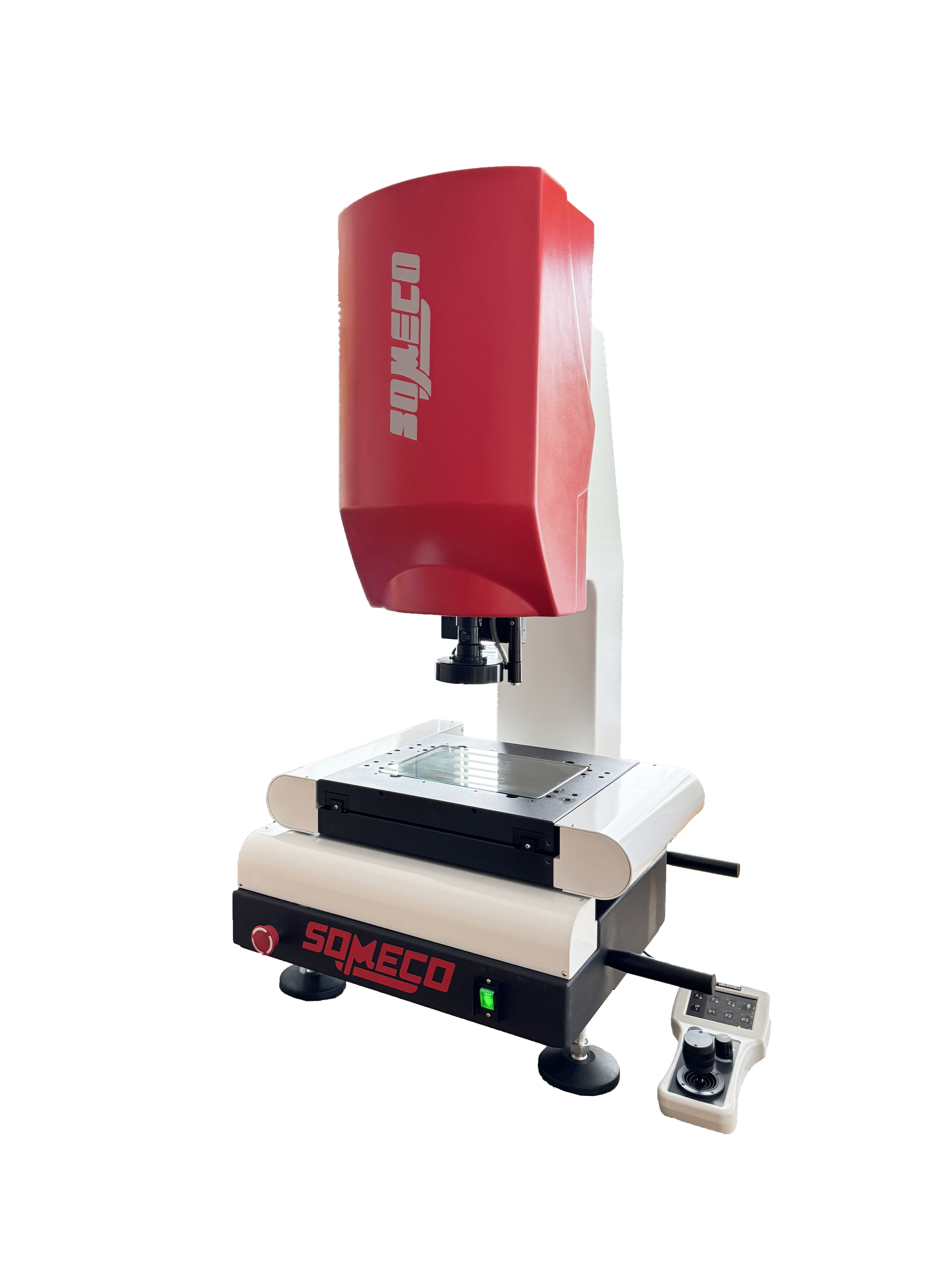

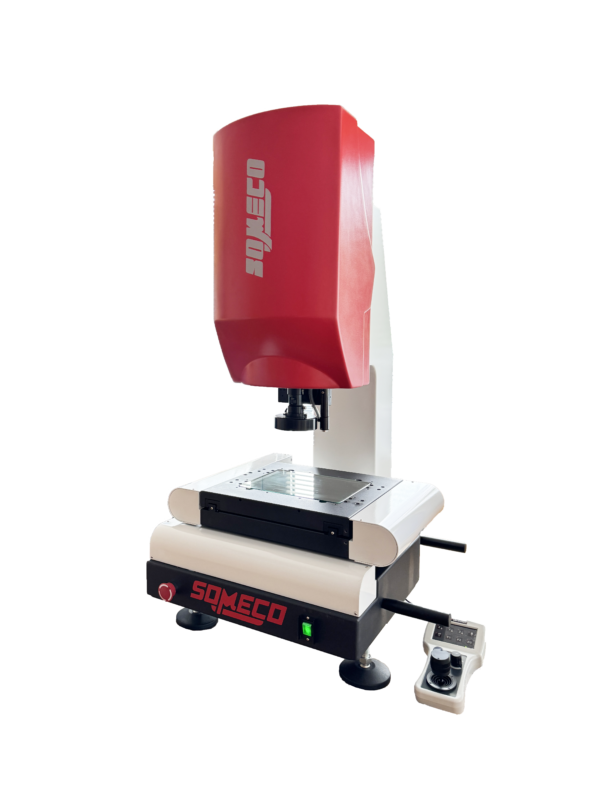

InspecVISTA is a 2D 2-axis coordinate measuring machine X and Y with a digitized Z-axis, and with the possibility of including a probing system for 3D CONTACT CMM. Result of the collaboration between ELECTRONICA & SOMECO, this 3rd generation has further increased its performance Robust, it can be used in production or control. This image analysis measuring system is a 2D vision machine for controlling milling, turning, plastic injection or other parts that should be checked without contact.
Its main technical advantages are:
- Context menu for each measurement function.
- Palletizing as standard to measure several parts at the same time.

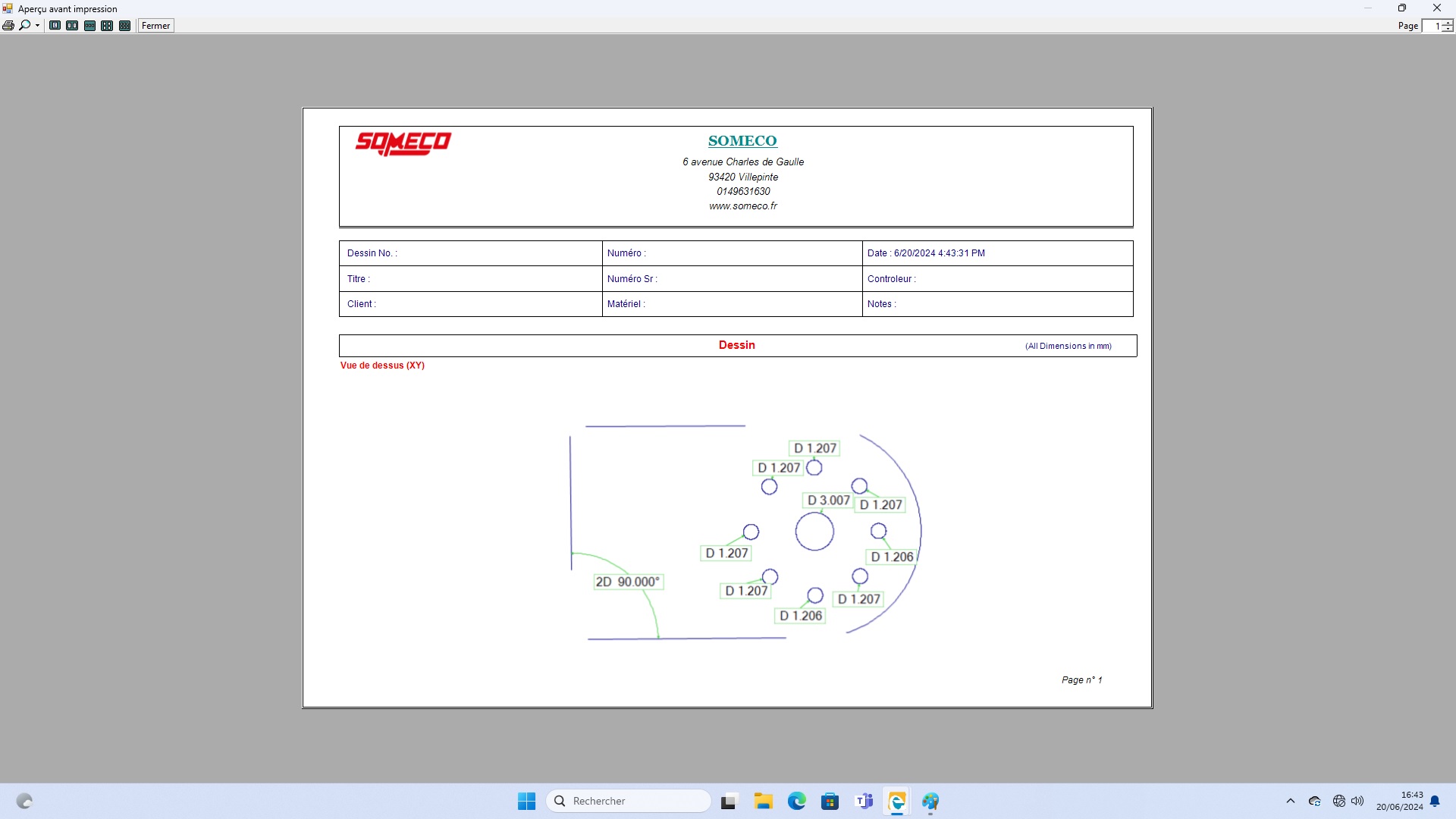

- Fully customizable reports: ability to extract data in different forms, and make capabilities with the SPC module included in the software with a single touch.
Key Features:

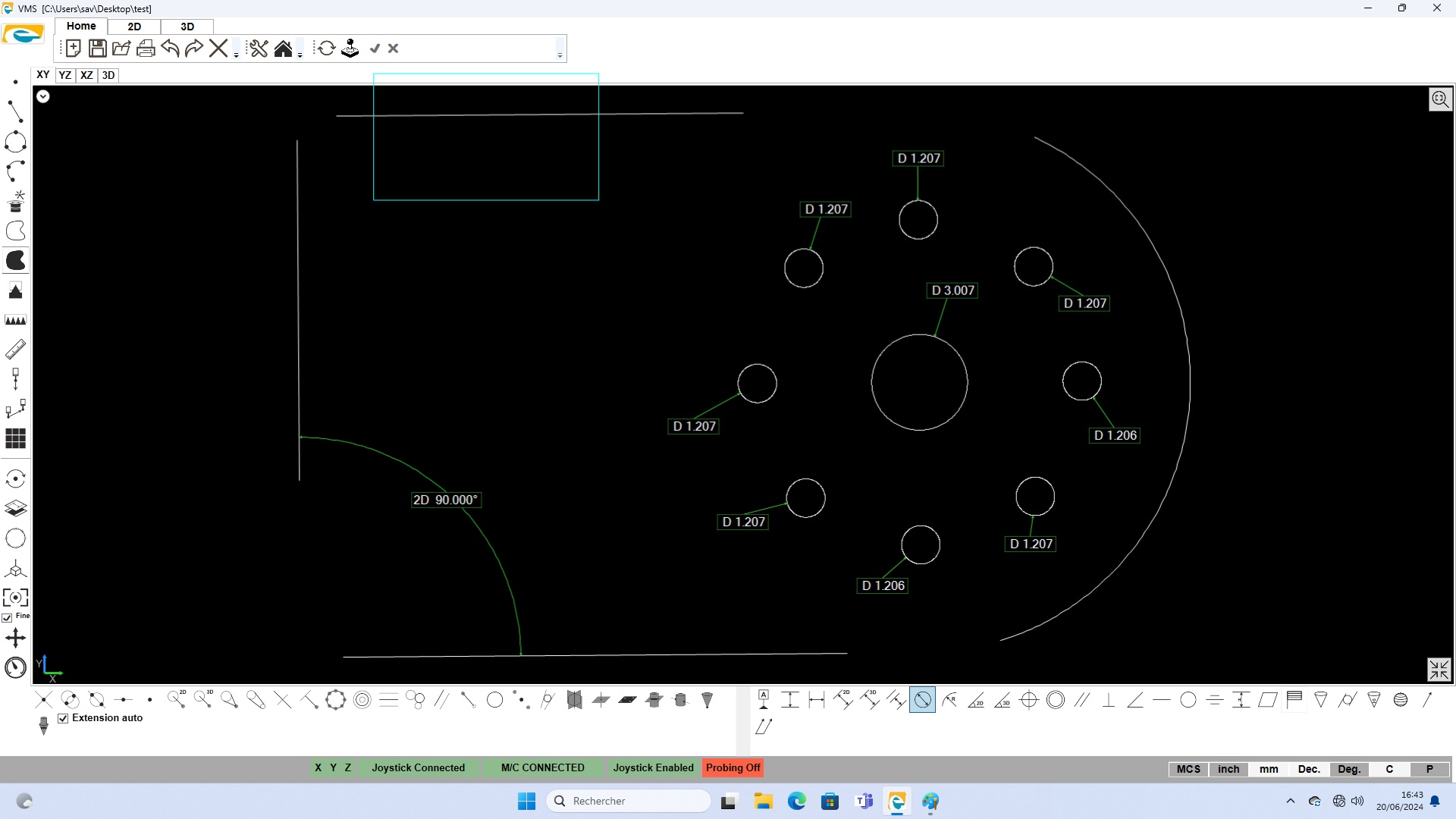

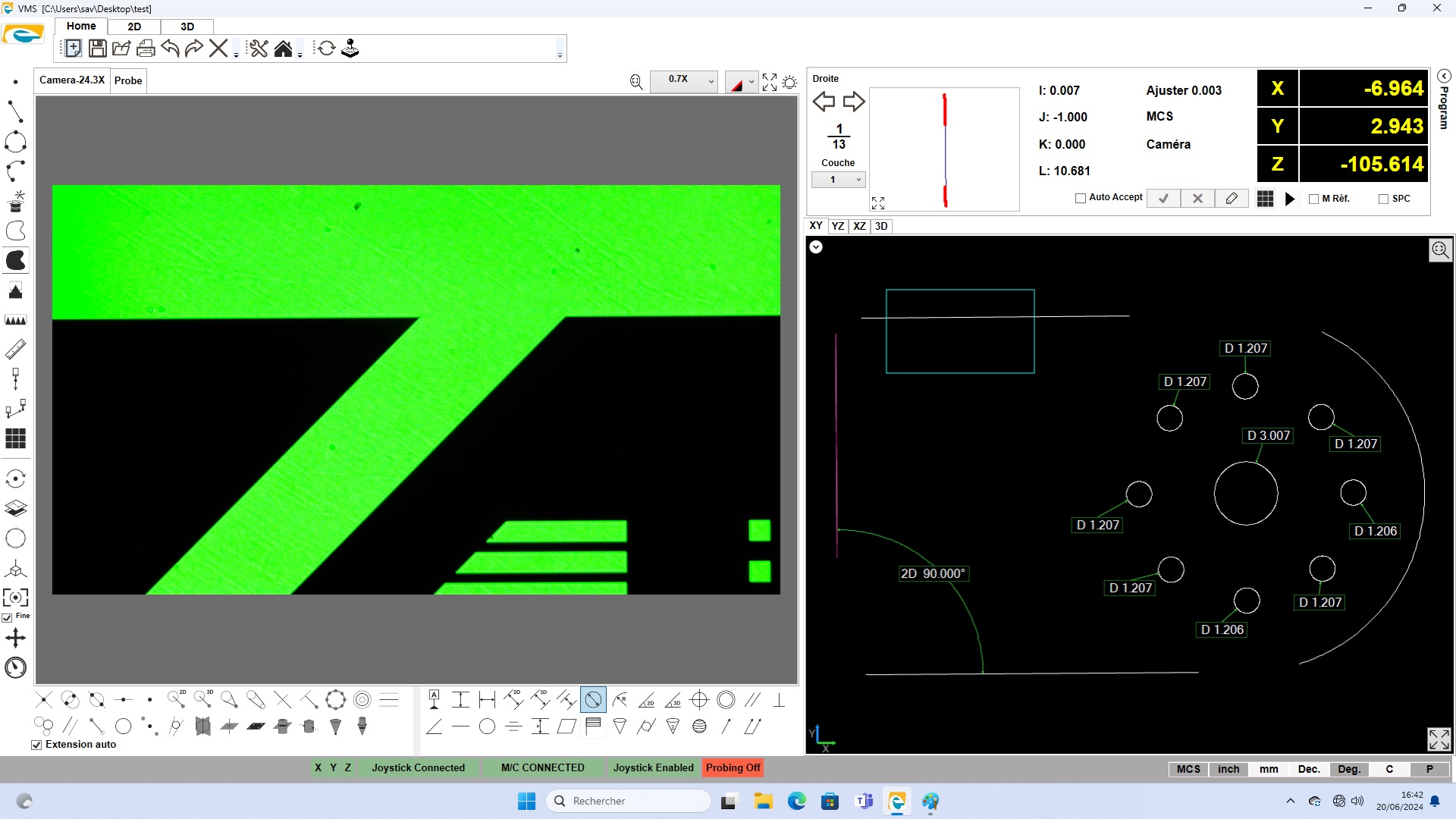

- Measurement by image analysis
- Digitized Z axis
- Possibility to add a Renishaw probe to switch to a 3D system CONTACT
- High resolution 1/3’ CCD camera
- Magnification from 30x to 190x (more on request)
- Manual or motorized zoom controlled by the software
- Laser pointer for easy positioning
- Autofocus
- Manual or fully motorized movements according to version
- Diascopic lighting (from below)
- Episcopic lighting (by 48 ring LEDs)
- Possibility to have coaxial lighting
- 0.5 μm axis resolution (optional 0.1μm)
