Electronic Level – BlueSYSTEM SIGMA

The BlueSYSTEM SIGMA is the result of ongoing development of the well-known MiniLEVEL and LevelTRONIC instruments.
A BlueSYSTEM SIGMA generally consists of one or two BlueLEVEL measuring instruments and a BlueMETER SIGMA display.
The BlueMETER SIGMA display can be connected to a PC with software to present and analyse the results of the various measurements.
These high-precision electronic inclinometers are particularly suitable for measuring very small angles.
This system can be used to check the flatness of marble or granite, or to check the geometry of all kinds of machines.

Two versions of the BlueSYSTEM are available:

• a/ With cable connection
• b/ With Bluetooth technology

These two versions are available in 2 sensitivities and 3 dimensions:

• Sensitivity: 1μm/m, measurement range ± 20mm/m
• Sensitivity: 5μm/m, measurement range ± 100mm/m
• Base dimensions: 150mm (standard), 200mm and 250mm.
• Prismatic bases can be fitted with magnetic inserts on request.

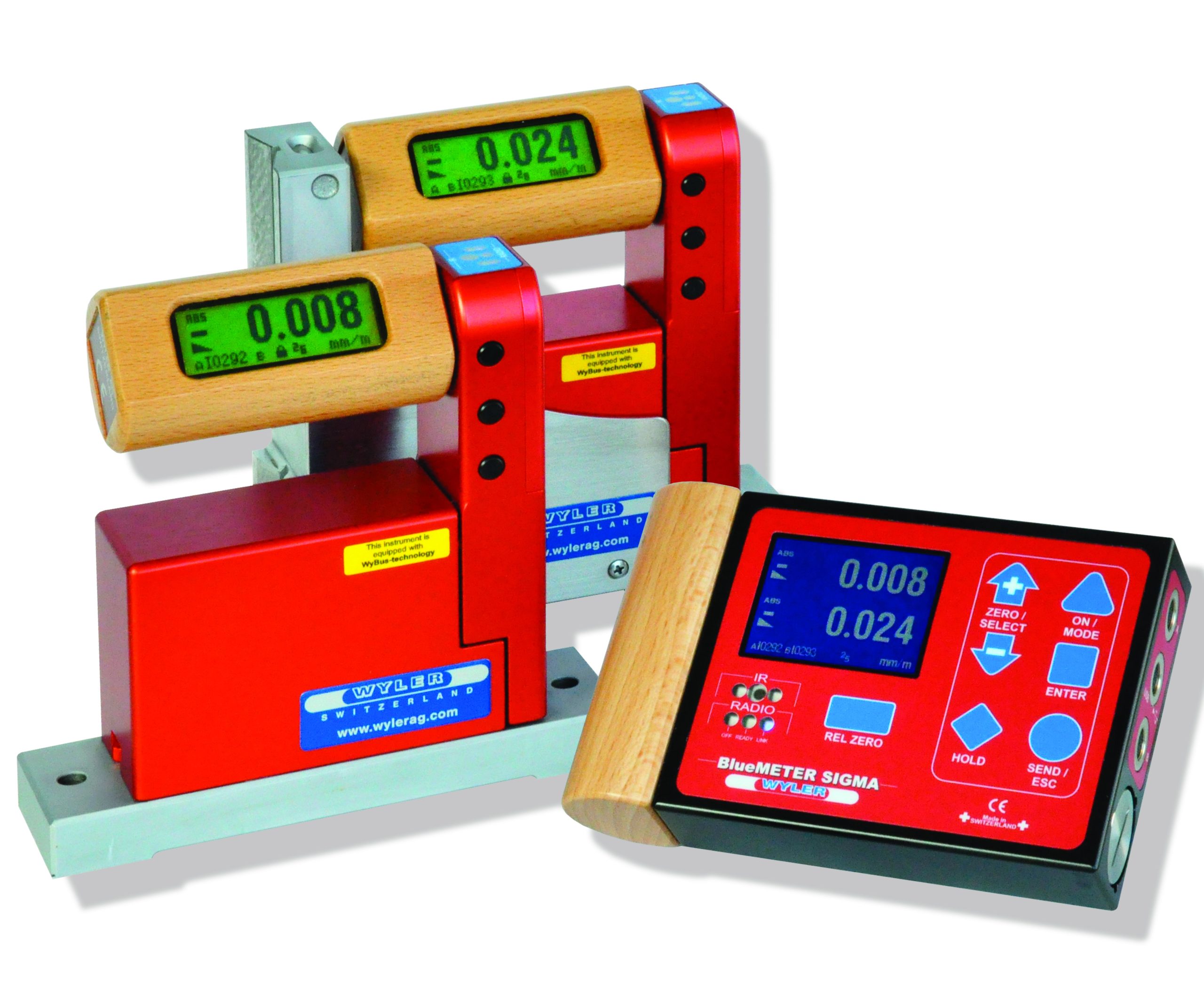

Composition of a BlueSYSTEM mounting set:

(standard 150 mm bases) Sensitivities can be chosen between 1 or 5 μm/m with or without radio module.

• 1 BlueLEVEL horizontal base
• 1 BlueLEVEL 90° prismatic base
• 1 BlueMETER SIGMA
• 2 x 2.5-metre cables
• 1 infra-red remote control
• Instructions for use
• Supplied in a case
