BlueSYSTEM II Bundle 004
Set engineer, for the installation and inspection of machine tools, marble and engineering structures
The BlueLEVEL inclinometers in the BlueSYSTEM range are high-precision instruments:

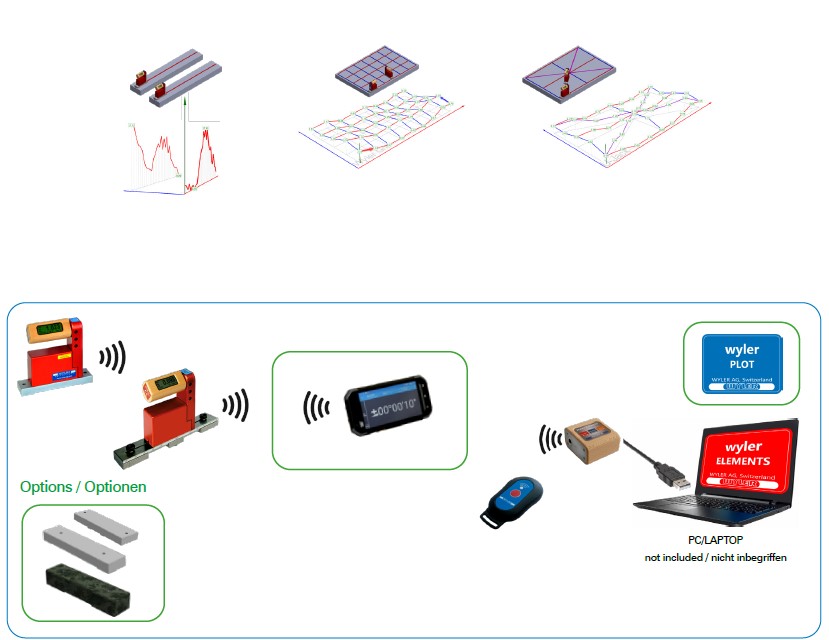

- BlueLEVEL can be used to check the geometry of machine tools. Depending on the “wylersoft” software version used, it will be possible to characterise the pitch, roll, yaw of slides, parallelism and perpendicularity of surfaces. wyler-ELEMENTS is the simplest version of the software, followed by wyler-PROFESSIONNAL and the most complete version is wyler-SPEC.
- BlueSYSTEM SETS are also recommended for mapping marble, checking the flatness of grid or flagged surfaces and for checking and inspecting engineering structures (bridges, buildings, tunnels, hydroelectric dams, solar panels, etc.).

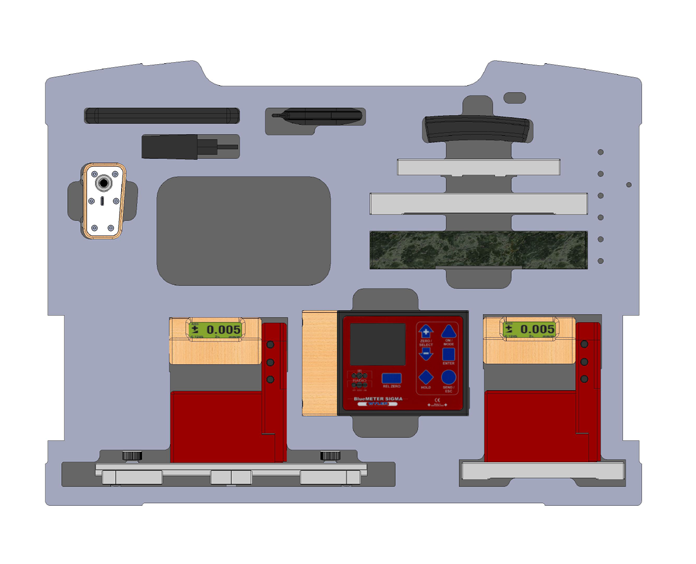

Composition of the BLUE SYSTEM II Bundle:
Bundle 004:
The Blue-System II 004 bundle includes two BlueLevel II inclinometers connectable via BlueTOOTH :

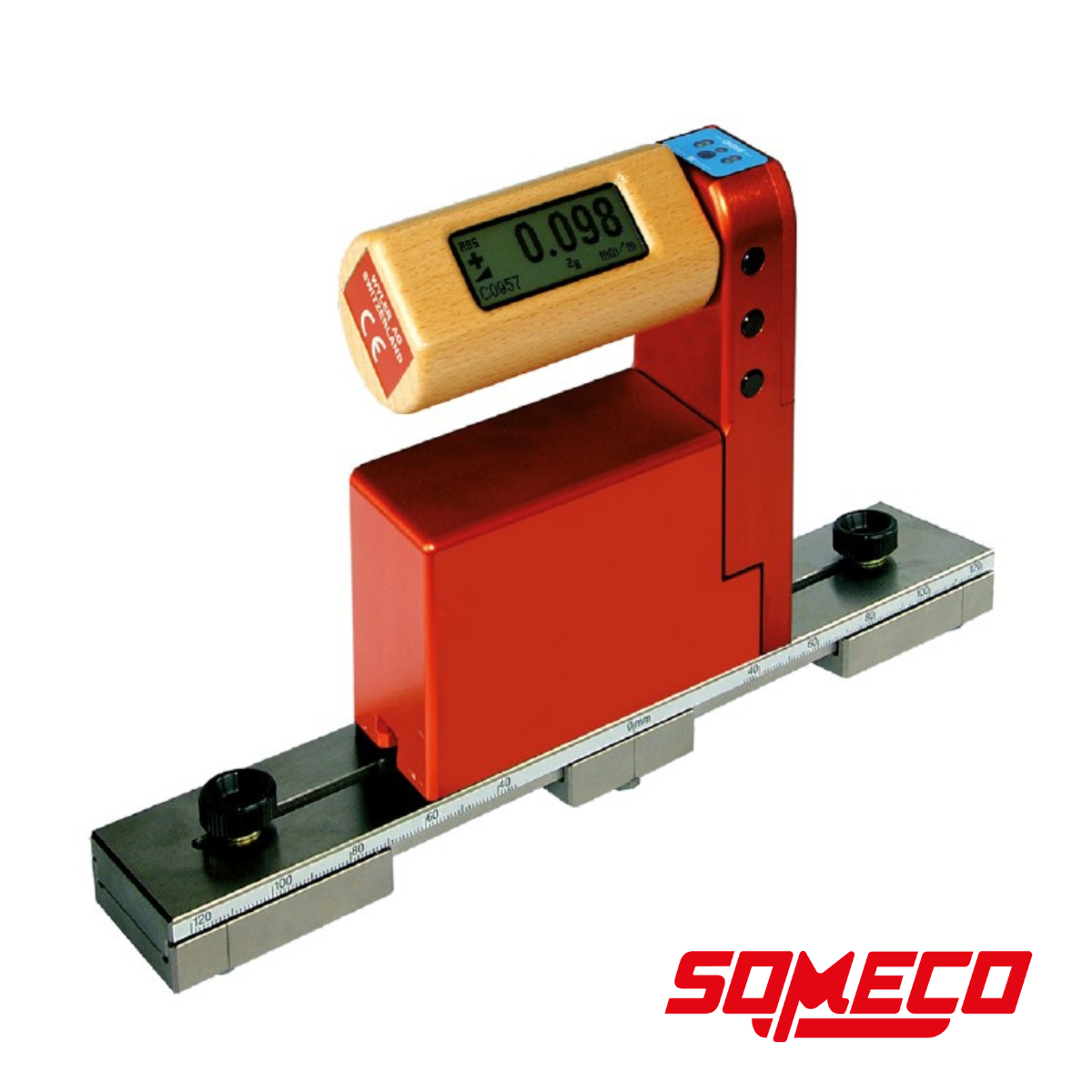

- Blue LEVEL type 122: flat horizontal base, 150 mm in hardened steel, with 2 mounting holes.
- Blue LEVEL type 453: flexible base, 300 mm.
Bundle 004-ELEMENTS:
- Bundle 004, to which is added
- wylerELEMENTS software
Bundle 004-PROFESSIONAL:
- Bundle 004
- Software wylerELEMENTS
- Software wylerPROFESSIONAL
Bundle 004-SPEC:
- Bundle 004
- Software wylerELEMENTS
- Software wylerPROFESSIONAL
- Software wylerSPEC
Optional accessories :
- Android remote display with wylerUNIVERSAL application
- WylerPLOT software: to read tilt values
Screw-on base:
- 1 Screw-on base, steel 150 mm for pitch 35…45 mm
- 1 Screw-on base, steel 200 mm for pitch 145…195 mm
- 1 Screw-in base, granite 200 mm for pitch length 105…195 mm
- SCS calibration certificate (Swiss SCS = French COFRAC)
