BlueSYSTEM II Bundle 001
Set engineer, for the installation and inspection of machine tools, marble and engineering structures
The BlueLEVEL inclinometers in the BlueSYSTEM range are high-precision instruments.

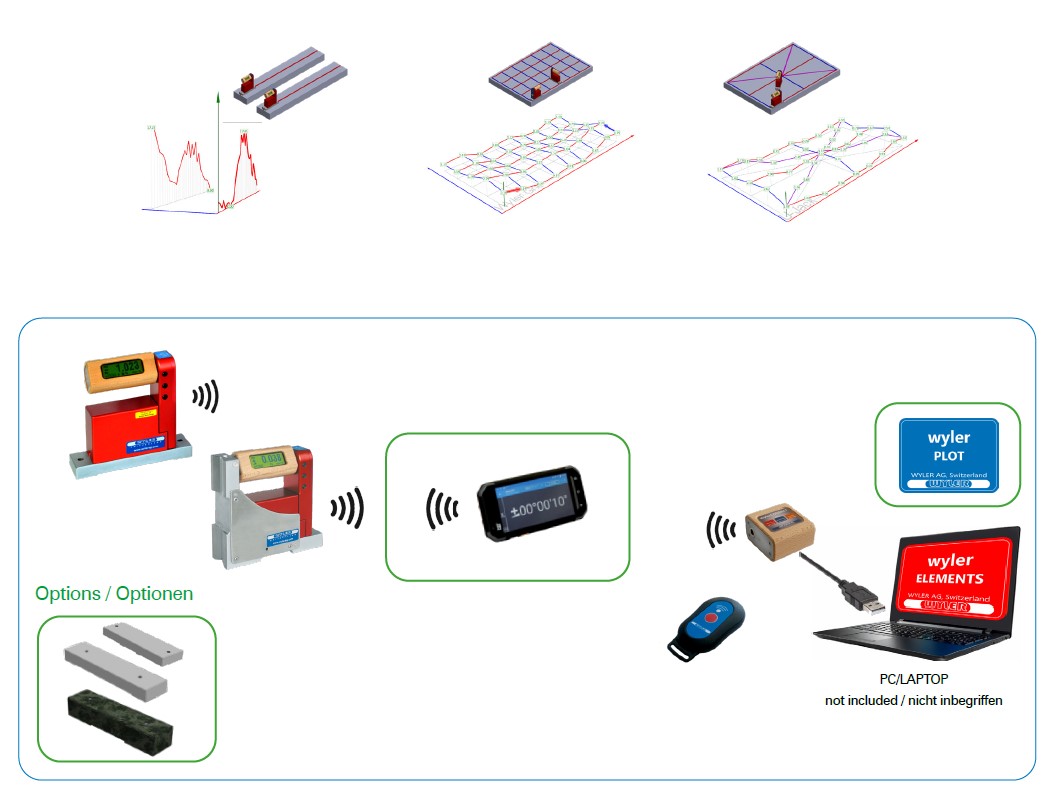

- BlueLEVEL can be used to check the geometry of machine tools. Depending on the “Wylersoft” software version used, it will be possible to characterise the pitch, roll, yaw of slides, parallelism and perpendicularity of surfaces. wyler-ELEMENTS is the simplest version of the software, followed by Wyler-PROFESSIONNAL and the most complete version is Wyler-SPEC.
- BlueSYSTEM SETS are also recommended for mapping marbles, checking the flatness of grid or flagged surfaces and checking and inspecting engineering structures (bridges, buildings, tunnels, hydroelectric dams, solar panels, etc.).

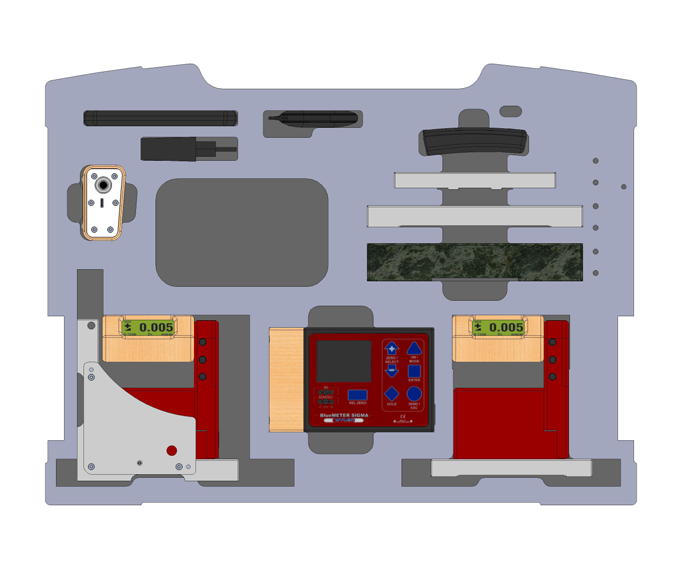

Composition of the BLUE SYSTEM II Bundle
Bundle 001:
- The Blue-System II 001 package includes two BlueLevel II connectable inclinometers in BlueTOOTH:
- Level Blue LEVEL type 122: flat horizontal base, 150 mm hardened steel, with 2 bores for fixing.

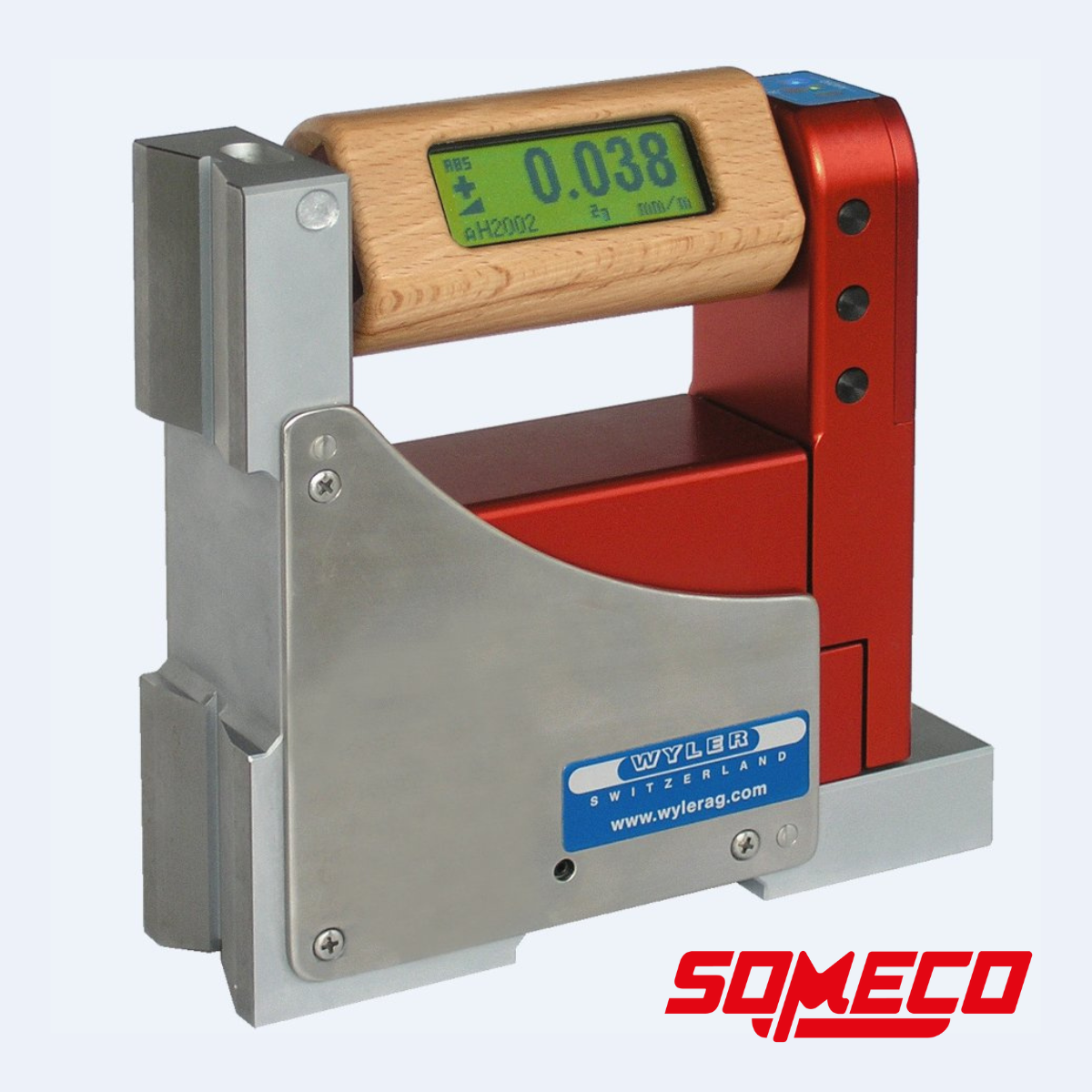

- Level Blue LEVEL type 243: prismatic base in L, 150 mm, steel cast iron, hand-scraped finish
Bundle 001-ELEMENTS
- Bundle 001, to which is added
- wylerELEMENTS software
Bundle 001-PROFESSIONAL
- Bundle 001
- wylerELEMENTS software
- wylerPROFESSIONAL software
Bundle 001-SPEC
- Bundle 001
- wylerELEMENTS software
- wylerPROFESSIONAL software
- wylerSPEC software
Optional accessories:
- Android remote display with wylerUNIVERSAL app
- WylerPLOT software: read tilt values
Base to be screwed:
- 1 Screw-in base, steel 150 mm for 35… 45 mm pitch
- 1 Screw-in base, 200 mm steel for 145… 195 mm pitch
- 1 Screw base, granite 200 mm for pitch length 105… 195 mm
- SCS calibration certificate (Swiss SCS = French COFRAC)
