Inclinometer WylerCLINO
The WylerClino Frame can measure the straightness, flatness, parallelism, squareness or geometry of machines.

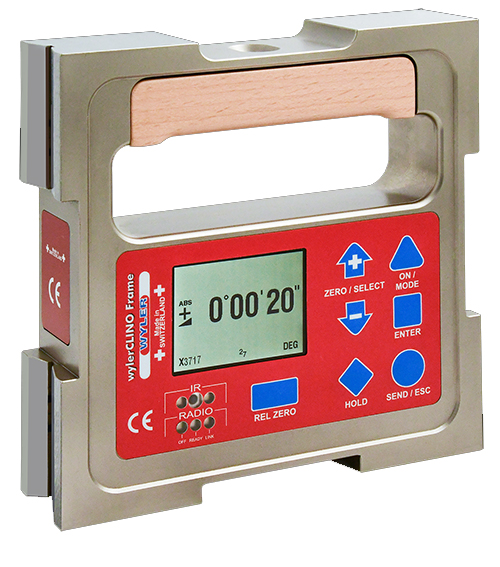

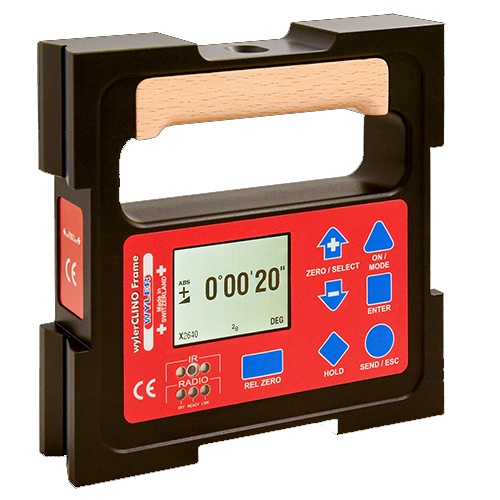

Frame inclinometer WylerCLINO – Blue-System
The Wyler Clino Frame inclinometer is part of the BLUESYSTEM range.
The device is available in 2 models:
- Wyler-CLINO Frame 160 mm
- Wyler-CLINO Frame 200 mm
The main advantages of the Wyler-clino:
- Vertical and horizontal machine parts can be measured and aligned
- Has a measuring range of ±20mm/m
- Large, easy-to-read colour display
- Possibility of different display methods
| Features | WilerClino Frame 160 mm | WilerClino Frame 200 mm |
|---|---|---|
|
Sensitivity : Measuring range : Error limits : Temperature error / °C (Ø10°C) : Response time : Batteries - size C : Optional (rechargeable) : External power supply : Operating temperature : Storage temperature : Net weight including batteries : Dimensions (Length x Width x Height) : Radio transmission : Frequency : Bluetooth communication range in BlueLEVEL production line with free line of sight : Digital output : |
0,001 mm/m / 0,2 arcsec ±20 mm/m max. 1% MW / min. 0,001 mm/m MW ≤2 mm/m max. 0,002 mm/m < 5 sec 2 x 1,5 V Alcaline 2 x 1,2 V NiMH +5V DC / +24 V DC + 0 ... 40 °C - 30 ... 70 °C 3600 g 160 mm x 40 mm x 160 mm Bluetooth Bande ISM / 2,4000 ... 2,4835 GHz . ca. 35 m RS232 / RS485, asynchrone, 7 DataBits / 2 StopBits, pas de parité, 9600 bp |
0,001 mm/m / 0,2 arcsec ±20 mm/m max. 1% MW / min. 0,001 mm/m MW >2 mm/m max. 0,020 mm/m < 5 sec 2 x 1,5 V Alcaline 2 x 1,2 V NiMH +5 V DC / +24 V DC 0 ... + 40 °C - 30 ... + 70 °C 4600 g 200 mm x 40 mm x 200 mm Bluetooth Bande ISM / 2,4000 ... 2,4835 GHz . ca. 35 m RS232 / RS485, asynchrone, 7 bits de données, 2 bits d'arrêt, pas de parité, 9600 bps |
