Choisissez votre modèle :

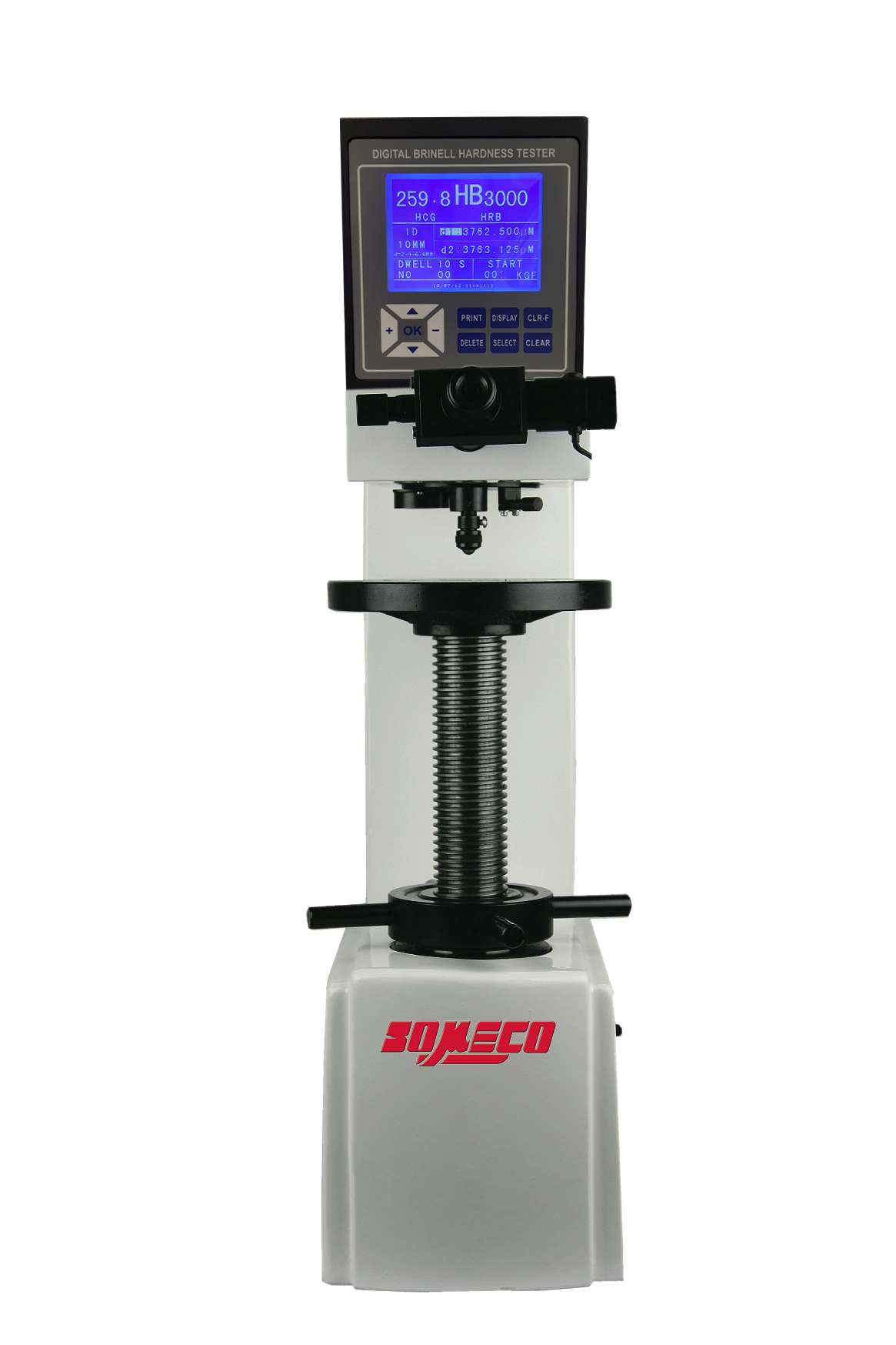

DHB3000-DX, duromètre BRINELL avec accessoires

The DHB-3000DX hardness tester enables testing using the BRINELL principle:
Direct measurement of the indentation using the integrated optical system ensures accuracy and repeatability. The hardness value is displayed on the machine’s large LCD screen, along with conversion to another scale if this function has been activated.
Ten (10) electronically controlled loads are available. Load application is motorised.
The force cell guarantees load application accuracy of ±0.5%.

Features :


  • HBW2.5/62.5 HBW2.5/187.5 HBW5/125 HBW5/750 HBW10/100
    HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000
  • Maximum sample height 230mm
  • Gooseneck 160mm
  • Minimum measurement 0.005mm
  • Adjustable load time 5 to 60 s.
  • Hardness range 8 to 650 HBW
  • Microscope magnification 20X
  • Dimensions: 550x210x750mm
  • Weight : ±90 kg
  • Power supply : 220V

Loads :

  • 62.5kgf(612.9N)-100kgf(980.7N)-125kgf(1226N)-187.5kgf(1839N)-

Supplied with :

  • Optical measurement system x1
  • Brinell indenters (1xØ2.5, 1x Ø5, 1x Ø10)
  • Brinell working standards x3 (without certi cat)
  • Anvils x3 (2 flat and 1 V-shaped)
  • Instructions for use
